RANGE VCL

	Width mm	Capacity lt	Weight kg	Maximum capacity ton	mm	mm	mm	mm	t	t	Blade mm	Thickness mm	t	t	l/h	bar	l/h	bar
VCL 240R			2390		410	2540		515	505			18		22	150-200	345	20	110
VCL 320R			2900		480	2770		563	725			26		30	200-300	345	20	120

* Weights without bracket
Force calculated at 75% of the maximum force
Products and features may vary withouth previous notice

Employment:

Frame:

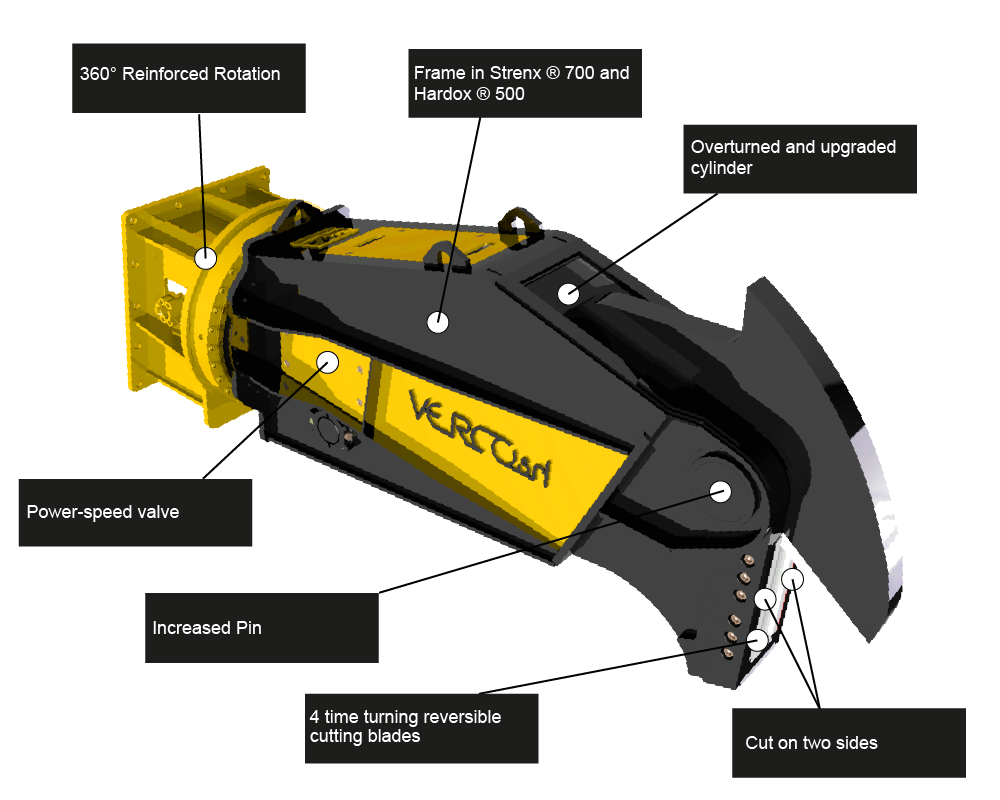

The whole structure is built with the best steels available on the market: Hardox ® 450/500 and Strenx ® 700 to minimize consumption and maintenance frequencies, so as to contain the costs.
Strengthened and overturned cylinder with longer stroke and with integrated power–speed valve to grant a quick job course, and protect the stem from wear (system fully designed by Verco srl).
360° hydraulic rotation equipped with geared motor, pressure control and anti-cavitation valves, in order to allow a fast positioning of the shear.
reinforced structure closed on the upper part to protect the cylinder and avoid distortions due to the lateral cutting of the shear.

Mobile jaws

Cut on two sides contemporary simultaneously.
Cutting blades: ensure long-lasting and performant cutting edge, 4 time turning reversible.
